Alientech 144300KAD4 K-TAG - Complete Set of Adapters
Alientech 144300KAD4 K-TAG - Complete Set of AdaptersProduct Description:NEW Alientech 144300KAD4 K-TAG - Complete Set of Adapters For Positioning Frame For ECUs Equipped With Infineon TricoreAdditional Adapter Accessories From ALIENTECH with Product more information
$ 1,992.31
+
Earn loyalty points with this purchase
Rewardsproduct sku
Z.420447.17032486585497217
Weight
1.0 kg
share product
product description
Alientech 144300KAD4 K-TAG - Complete Set of Adapters
Product Description:
NEW Alientech 144300KAD4 K-TAG - Complete Set of Adapters For Positioning Frame For ECUs Equipped With Infineon Tricore
Additional Adapter Accessories From ALIENTECH with Product Number: MK7895
This Weight Product: 7500g
Specs:
Condition: New
Manufacturer: ALIENTECH
Weight: 7.5KG
DIMENSIONS: 40 × 50 × 18 cm
Set of adapters K-TAG

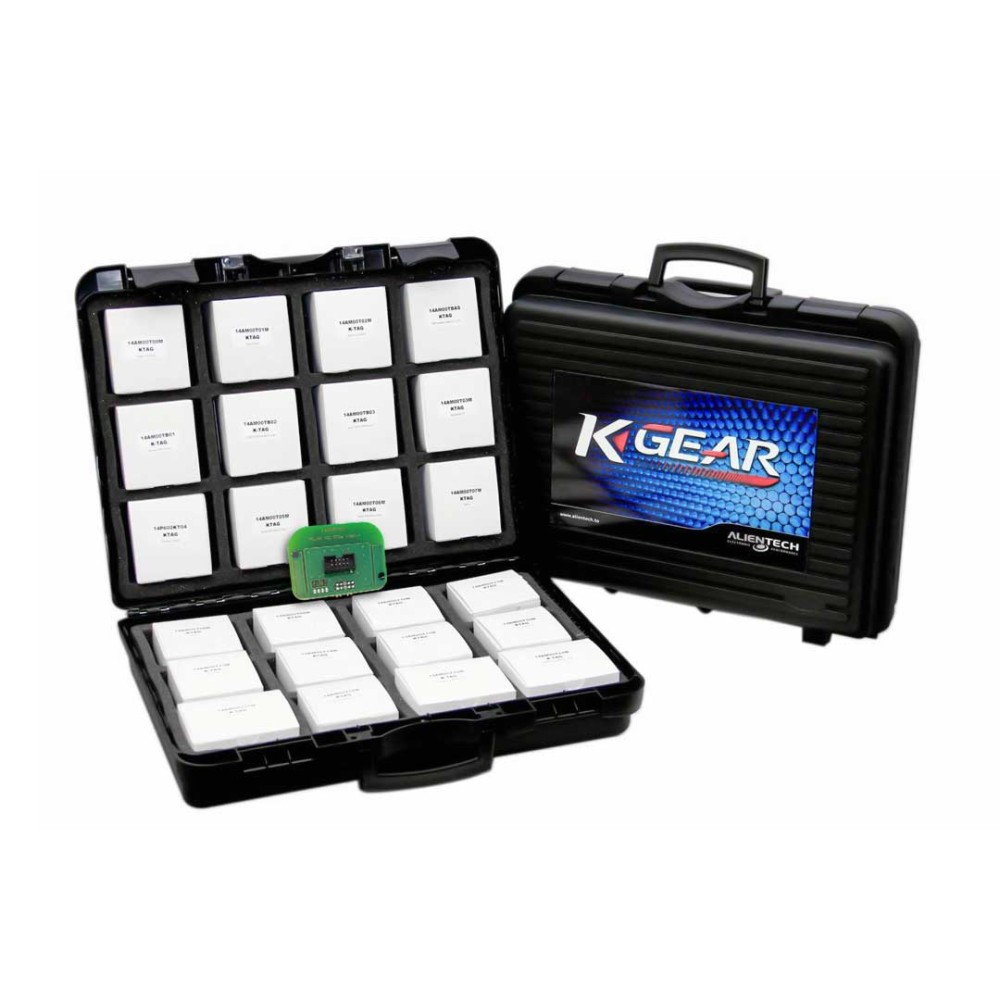

K-Gear. Case Including Adapters For Positioning Frame For ECUs Equipped With Infineon Tricore& Motorola MPC5xx& Motorola MPC56xxx& NEC 76F00xx& Nexus MPC5xxx& Renesas SH705x& And ST10Fxxx Microprocessors
No soldering& no risk!
Description
K-gear Includes All The Adapters For The Positioning Frame.
You'll Connect Your K-Tag Directly On The Board Of The ECU Using The Programming Probes& Designed To Be Used On All The Most ECUs.
During Your Working Trips& You'll Just Replace The Adapters Within The K-Gear Suitcase In Their Safe Places.
Technical Features
Main supported ECUs:
- AC Delco E83
- Bosch EDC16
- Bosch EDC17
- Bosch EDC7
- Bosch ME7
- Bosch ME9
- Bosch MED17
- Chrysler NGC5
- Continental CM2250
- Continental SIM
- Continental SIMOS
- Continental SID
- Delphi CRD
- Delphi DCI
- Delphi DCM
- Denso CAN
- Denso MB
- Denso PS
- Denso K-Line
- Detroit DDEC
- EFI T6
- Magneti Marelli IAW
- Magneti Marelli MJD
- Magneti Marelli MJ8DF
- Siemens SID
- TRW EMS2 E5
The kit includes:
- Adapter Delphi DCM MOTOROLA MPC5xx
- Adapter Bosch MOTOROLA MCP5xx
- Adapter Delphi DCI MOTOROLA MPC5xx
- Adapter Bosch ME ST10Fxxx
- Adapter Magneti Marelli Nexus MPC5xxx
- Adapter Delphi Nexus MPC5xxx
- Adapter to write Denso Renesas SH705x #1
- Adapter for lettura Denso Renesas SH705x #1
- Adapter to write Denso Renesas SH705x #2
- Adapter to write Denso Renesas SH705x #2
- Adapter for lettura Denso Renesas SH705x #2
- Adapter Nexus MPC5xxx ECU TRW
- Adapter EFI T6 Nexus MPC5xxx
- Adapter for Denso NEC 76F00XX 20pins
- Adapter for Denso NEC 76F00XX 26pins
- Adapter Infineon Tricore ECU Bosch MED17.9.7
- Adapter Magneti Marelli MOTOROLA MPC56xxx
- Adapter Infineon Tricore ECU Bosch MEDC17.9
- Adapter Continental SID208 – SID 209
- Adapter Continental SID807
- Adapter Continental Simos PCR 2.1
- Adapter Multi-funzione for ECUs Denso
- Adapter Renesas Board SH725xxx-36
- Adapter Renesas Board SH725xxx-26
- Pull-out Tip Siemens MOTOROLA MPC5xx for Adapter Multifunzione
- Pull-out Tip Magneti Marelli MOTOROLA MPC5xx for Adapter Multifunzione
- Pull-out Tip Bosch EDC7 MOTOROLA MPC5xx for Adapter Multifunzione
- Adapter Bosch EDC17/MED17 Infineon Tricore
- Grabber probesSMD for microprocessoreBGA
Data Sheet
- PCB with programming probes and LED illumination
- Grabber probes
